Setting Up Your Unit

The new set-up procedure for the CS-5000 and CS-5100 V2 with the new CB-5501M is easier than ever. Follow the simple steps listed to set your unit up. This procedure works for the new line of CS-6200 controls as well. For older, V1 units (any unit shipped before mid-summer 2013), please refer to the set-up procedure video and instructions by clicking the second tab below.

If you find that your unit fails to calibrate even after following the appropriate procedure, please contact us immediately at (800) 883-7542 or use the form on the Contact Us page.

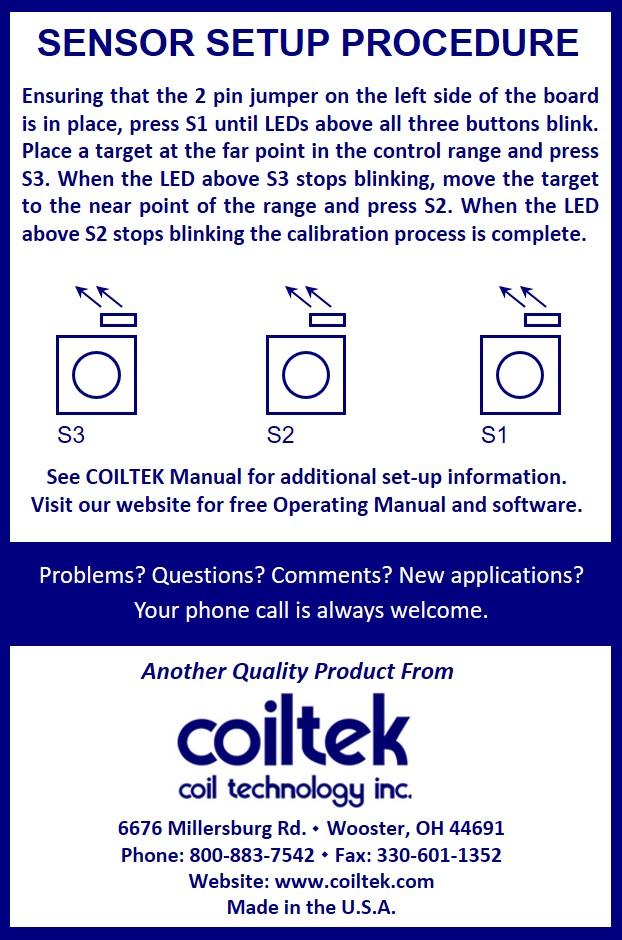

The set-up procedure for a V2 Coiltek loop-control system is quick and easy. Please pay close attention to instructions below to insure your unit is set up properly.

For more detailed set-up instructions, including a step-by-step 3CPO programming demonstration, see the videos below.

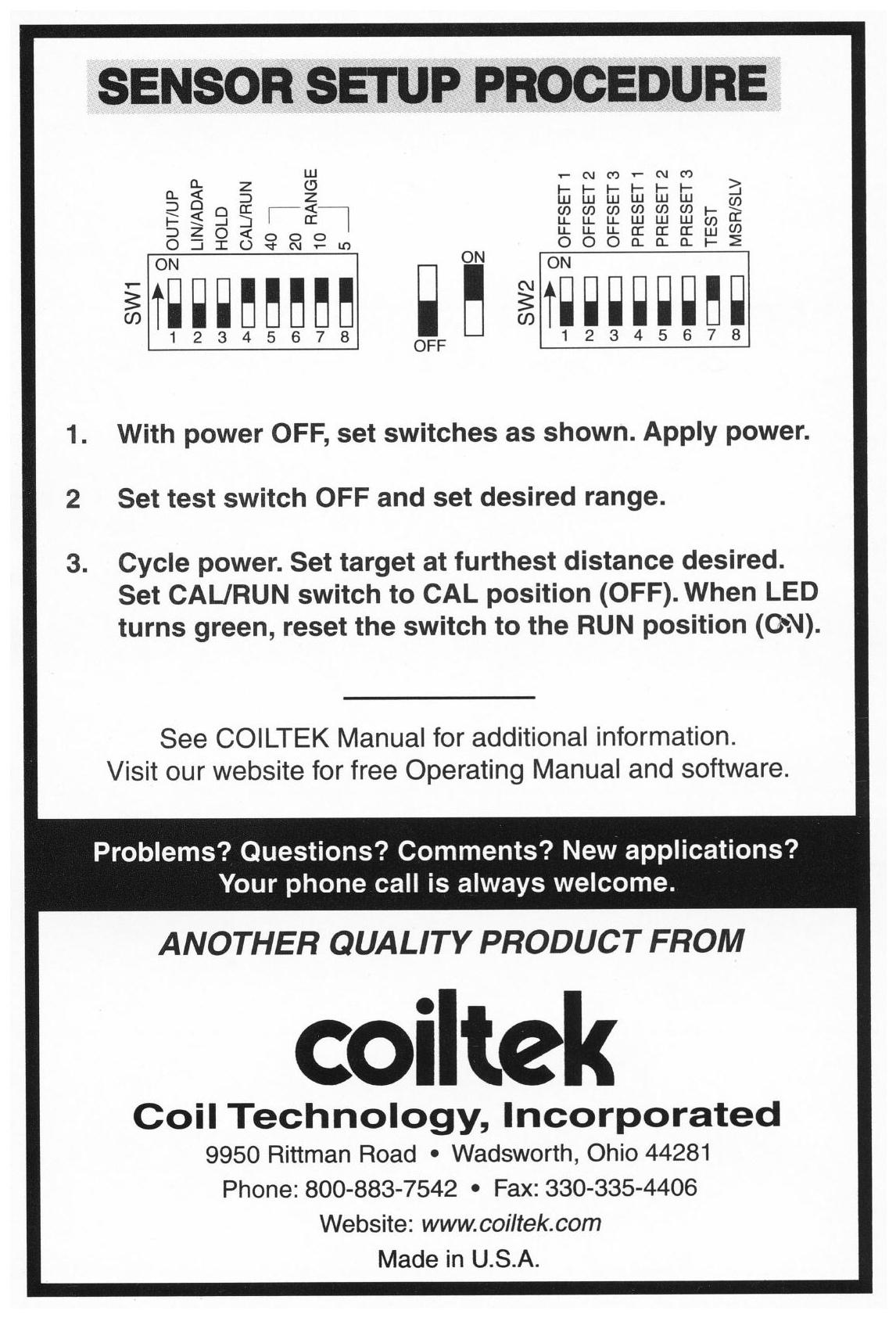

The set-up procedure for a V1 Coiltek loop-control system (CB-5101M mainboard, CS-6100) is quick and easy. Please pay close attention to instructions below to insure your unit is set up properly.
